Tinius Olsen

90° Peel Unit, 1.5kN

Slide1

Slide2

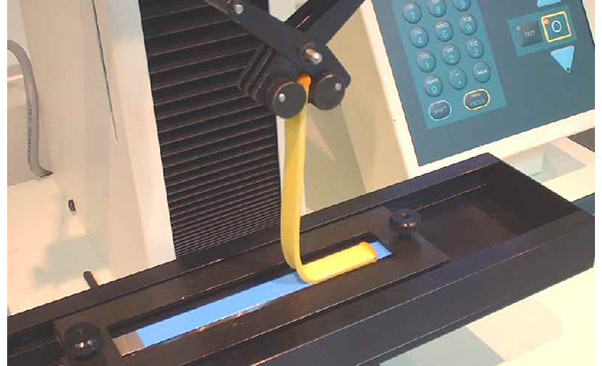

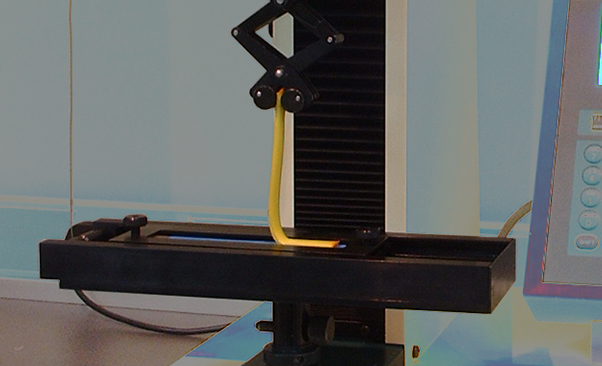

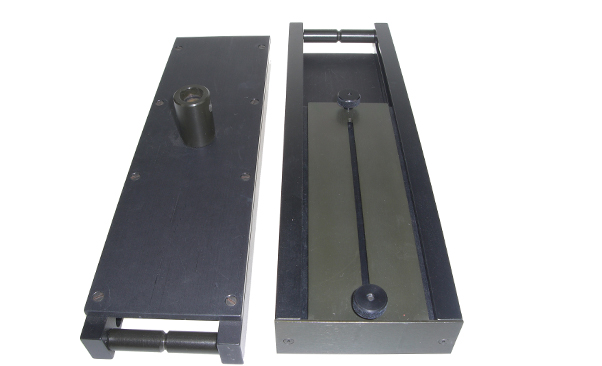

The 90 degree peel unit is comprised of a moving test plate mounted on bearings.

To maintain a constant peel angle, the test plate is pulled in unison with the testing machine crosshead via a cord and pulley system. The printed circuit board (PCB) sample is retained on the test plate with a slotted clamp plate. An HT50 or similar grip is required to grip the PCB copper strip.

Applications:

Specifically designed for Peel testing bonds between adhesive surfaces.

Compatible with:

This fixture is compatible with ST series of materials testing machines

Specifications

Max. Capacity: 1.5kN (300 lbs)

Min. Load cell: 50N

Construction: Zinc plate & black passivate

Mounting interface: Quick change with backlash elimination lock interface

Dimensions: 240mm long peel plate

Specimen dimension: 50mm wide, 150mm long
Allows multiple sample substrate widths (40-150mm) in predefined fixings

Weight: 470g

Temperature range: -20° to 100°C (Options available for wider range)

Standard:

ASTM D6862, D6252

ISO 8510-1, EN 1464:1994, BS EN 1372
