Tinius Olsen

HT45 Pneumatic Grips

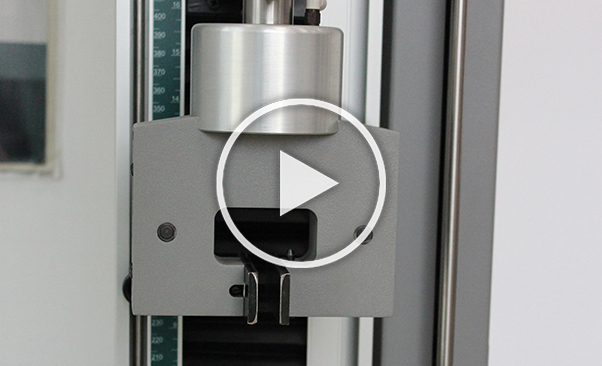

Slide1

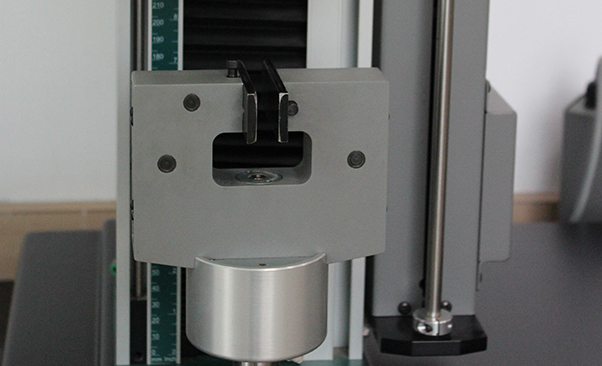

Slide2

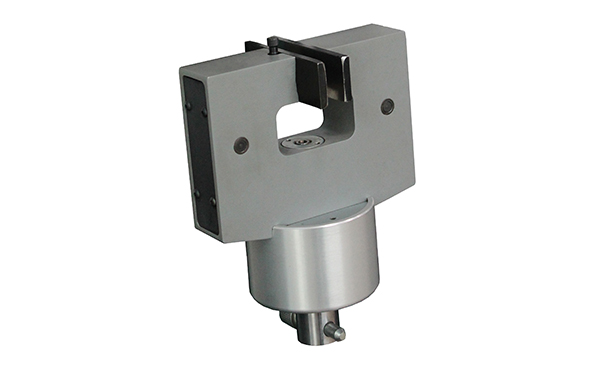

Slide3

These heavy duty pneumatic grips are dual-action, pneumatically-operated jaws that clamp the specimen on the center line and maintain position even when the specimen reduces thickness during the test. Interchangeable jaw options are available.

The pneumatic tensile grip is used on ST series materials testing machines.

Specifications

Maximum capacity: 5kN/1,000lbf

Minimum loadcell: 500N/100lbf

Maximum sample width: 75mm/3in

Maximum sample thickness: 10mm/0.4in

Length each: 160mm/6.3in

Weight each: 1.7kg /3.75lb

Temperature limits: Ambient

Operating air supply: 80-100psi/5.5-7bar

Applications

Flat flexible materials

Textiles

Paper

Film

Polymers
