TO-553 MODEL of Automatic Compactor for Bituminous Mixes

Tinius Olsen

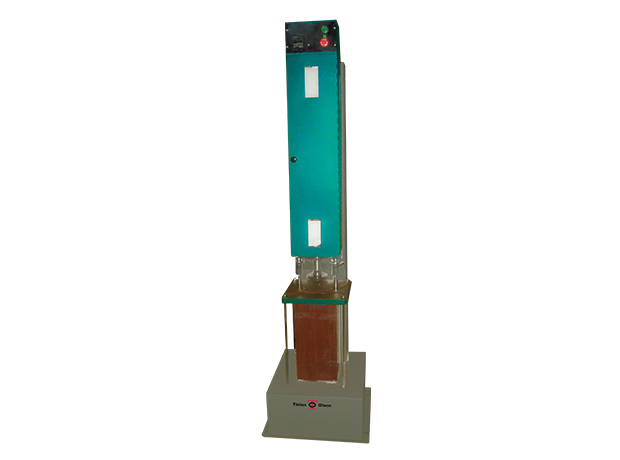

Automatic Compactor for Bituminous Mixes

slider1

The Automatic Compactor eliminates the laborious process of manual compaction and results in consistent laboratory specimens.

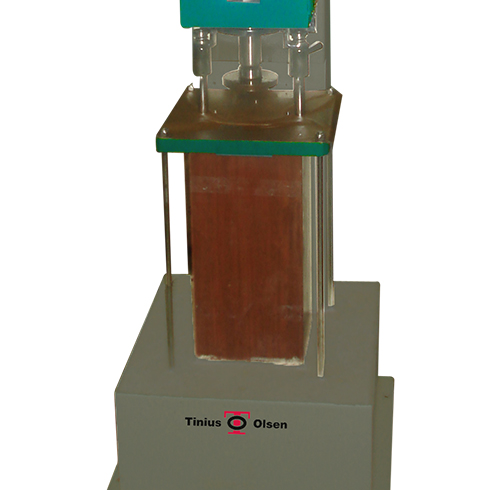

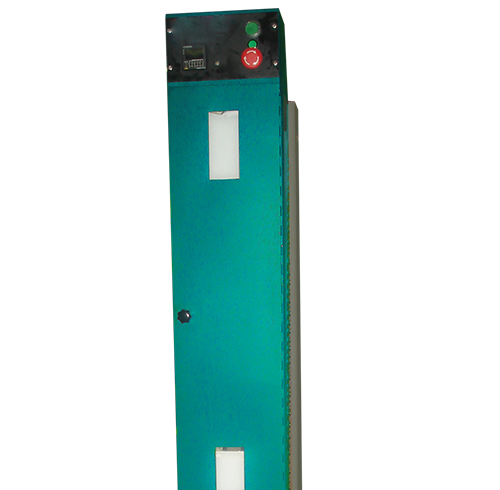

This equipment consists of a drive mechanism that lifts a 4.5kg weight and drops it through a height of 457mm. A removable rammer foot facilitates preheating. A compaction pedestal with specimen holder is fixed to the base. An automatic blow counter enables the number of blows to be preset before each test and automatically stops the machine on completion.

Download User Instruction Manual
Please Fill the Fields to download pdf
First Name*

Last Name*

Company Name*

Job Title*

Your email*

Phone Number*

Equipment, Interested In*

Industry*

Street

Country*

State*

City*
Zip Code

How can we help?

By ticking this box I agree, in accordance with the General Data Protection Regulation (GDPR) 2018, to my personal data being stored and used by Tinius Olsen. Typically, information may be used; to identify and communicate with you, for commercial activities (including newsletters) or for marketing and business updates.
Download Brochure
Request a Proposal
Mail us

Features & Benefits

Applicable Standards: BS598-107, EN 12697-10, -30, AASHTO T245
Rugged construction to withstand hard work
Fully automatic and easy to operate
Uniform compaction
Automatic blow counter

Standard & Optional Accessories

Supplied as standard:

TO-55002 Compaction mold
TO-55003 Base plate
TO-55004 Extension collar

Optional accessories:

TO-55002 Compaction mold
TO-55003 Base plate
TO-55004 Extension collar
