Model 3000SL-RB Hydraulic Materials Testing Machine from Tinius Olsen

Tinius Olsen

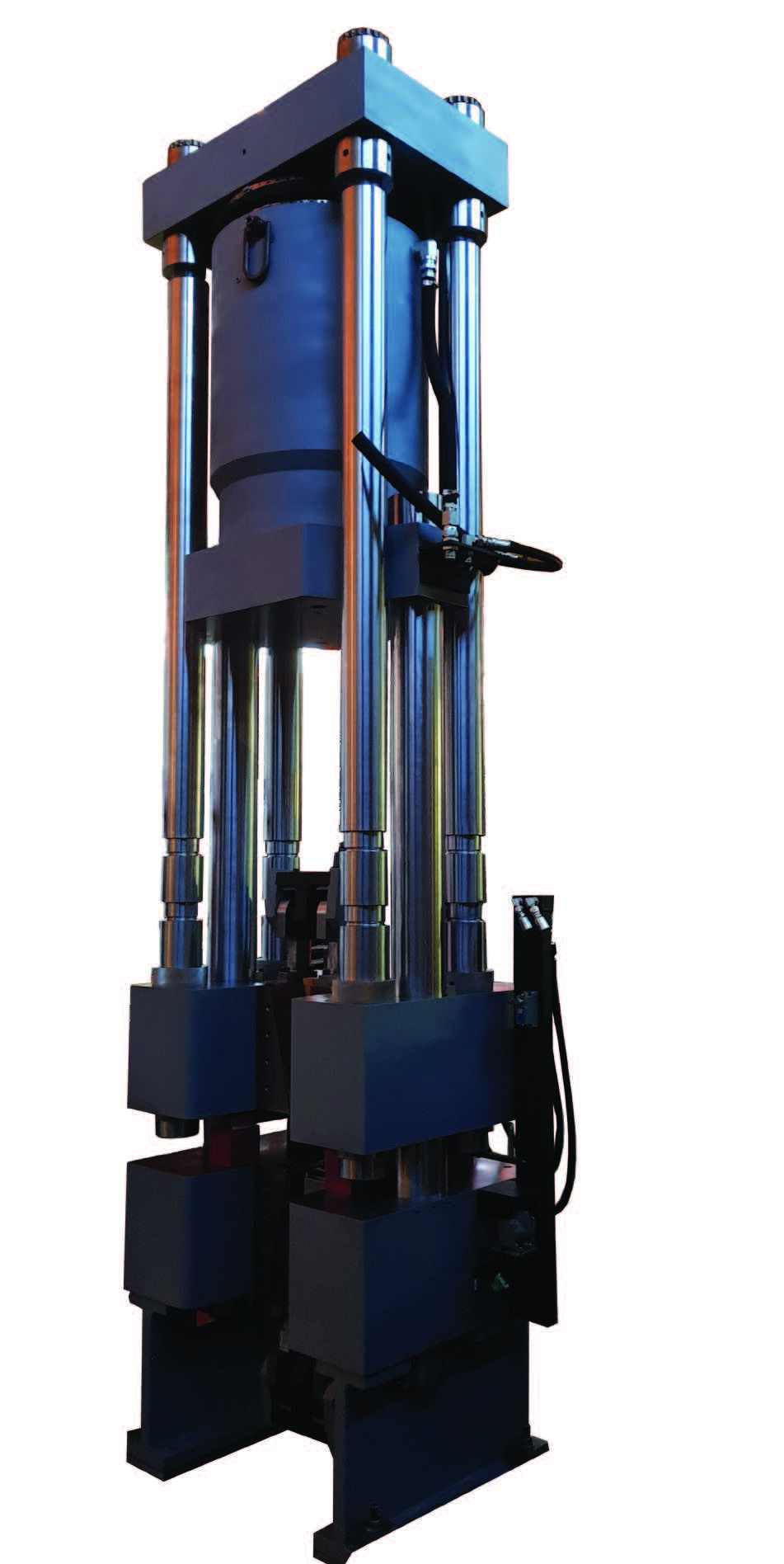

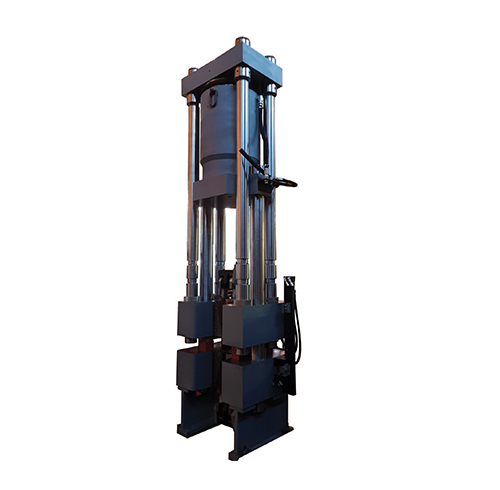

Model 3000SL-RB

3000SL-RB

C53A4256

The model 3000SL-RB is specifically designed for extraordinary testing requirements. Typical applications include testing reinforcing bars, standard plate and rod specimens, concrete cylinders, and other critical materials and products.

The robust design that incorporates quality materials and precision engineering ensures a testing capability, even at full load, day in, day out. Test machines become complete, powerful test systems with the addition of grips to hold the specimen, strain measurement instrumentation and Tinius Olsen’s Horizon Data Analysis software.

Optional servo control

As dependable as the basic manually controlled Super “L” is, the rate at which load is applied is determined by the operator. Therefore, as an option, the Super “L” can be supplied with closed-loop servo control capability. This closed loop control system constantly monitors the test in progress and regulates the testing rate to maintain the preset conditions. This option enables you to conduct compression tests and flexure tests automatically and ensures consistent testing control free from operator variability. Also, the valuable closedloop servo control feature can be added easily to the machine at a later date by the addition of hardware and software options.

Download User Instruction Manual
Please Fill the Fields to download pdf
First Name*

Last Name*

Company Name*

Job Title*

Your email*

Phone Number*

Equipment, Interested In*

Industry*

Street

Country*

State*

City*
Zip Code

How can we help?

By ticking this box I agree, in accordance with the General Data Protection Regulation (GDPR) 2018, to my personal data being stored and used by Tinius Olsen. Typically, information may be used; to identify and communicate with you, for commercial activities (including newsletters) or for marketing and business updates.
Download Brochure
Request a Proposal
Mail us

Features & Benefits

Suitable for tension and compression to a maximum force of 3000kN/600,000lbf.

Four column rugged design underpins the frame stiffness and power.

The unique friction-free piston operation gives exacting control of movement be it under constant speed, stress or strain.

Different system interface options are available, from a familiar tethered handheld interface, a wireless Bluetooth interface panel running an Android application, or virtual machine controller application running on a PC. All interfaces work with Horizon Data Analysis software.

Meets or exceeds the requirements of national and international standard for materials testing systems.
