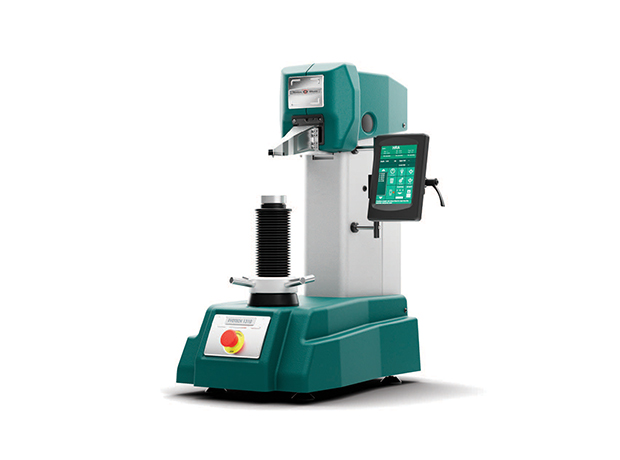

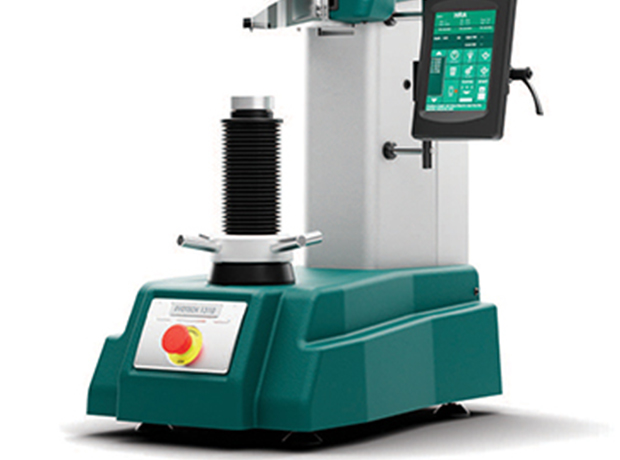

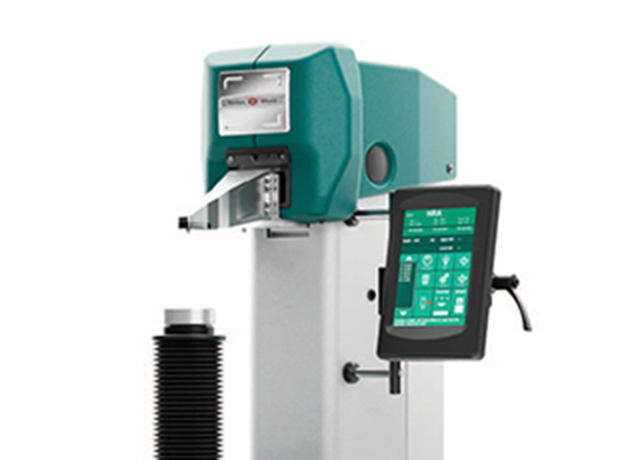

The model Evotech 1330 is a new generation of hardness testing instrument with protruding nose design. This long nose design allows you to reach as far as 150mm inside a bore or just on flat material similar to any other Rockwell hardness tester.
A twin scale Rockwell machine that also provides Brinell testing. Easy to use, excellent workpiece overview. Test forces range from 1-187.5kgf, which means that even this basic model is equipped with Rockwell, Superficial Rockwell and Brinell load settings. System control is managed via a simple-to-use 8.5” full color industrial touchscreen. The touchscreen will also display results and statistics.

  • Download Brochure
  • Request a Proposal
  • Mail us

Features and benefits

  • Load cell, closed loop, force feedback system
  • 150mm protruding nose, 200mm throat depth
  • Load range 1-187.5kgf (9.8-1839N)
  • Meets or exceeds ISO, ASTM and JIS standards
  • Force(load) measurement at the indenter position
  • Absolute linear applied test force, no lever construction
  • Hysteresis free mechanical system
  • 400mm workpiece height
  • Motorized spindle for fully automatic clamping & testing (optional)
  • Power LED light in nose for bright sample illumination
  • Removable workpiece clamp, with interchangeable inserts, clamps/holds sample firmly in position (optional)
  • Integrated high performance system controller, mSSD hard drive storage
  • Industrial 8.5” touch screen
  • LAN, W-LAN, USB connectivity
  • Wireless keyboard & mouse
  • ABS cover included, protecting machine base against falling objects
  • Optional palm scanner for automatic Brinell measurement

    • MODEL DETAILS

    EV-040-1330 3-150kgf Rockwell, Superficial Rockwell
    1-187.5kgf Brinell (optional)
