Evotech 700* series of Universal hardness testing system from Tinius Olsen

Tinius Olsen

Model Evotech 700*

Evotech 700*

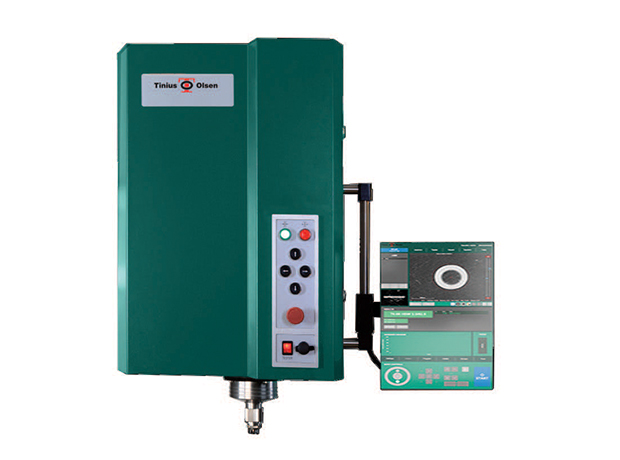

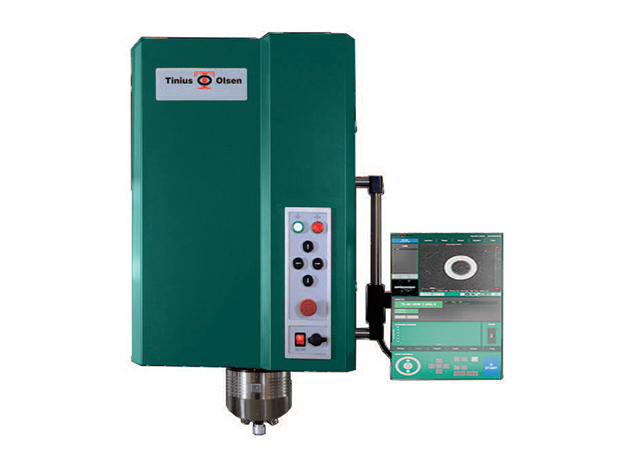

The model Evotech 700*, test heads can be supplied with integrated or external (table or floor mounted) operating console. The test heads can be fully integrated in product manufacturing lines. The closed loop system based on a load cell and Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT and HBT scales are part of testing capabilities. The test force ranges from 200gf to 3000kgf and test cycles can be automatic or manual. With motorized Z axis, descending test head capable of workpiece detection and motorized 9 position turret, it is one of the most loaded technological Hardness tester. 15” industrial touch screen and PC based Horizon software added advantage for this equipment.

Download User Instruction Manual
Please Fill the Fields to download pdf
First Name*

Last Name*

Company Name*

Job Title*

Your email*

Phone Number*

Equipment, Interested In*

Industry*

Street

Country*

State*

City*
Zip Code

How can we help?

By ticking this box I agree, in accordance with the General Data Protection Regulation (GDPR) 2018, to my personal data being stored and used by Tinius Olsen. Typically, information may be used; to identify and communicate with you, for commercial activities (including newsletters) or for marketing and business updates.
Download Brochure
Request a Proposal
Mail us

Features and Benefits

Load cell, closed loop, force feedback system

Load range 200gf-3000kgf (2N-30kN)

Meets or exceeds ISO, ASTM and JIS standards

Descending test head with automatic workpiece detection

PC based Horizon hardness testing firmware and database file system, standard

Large, adjustable 15” industrial touch screen

Automatic or manual focus, manual or fully automatic indent measurement, standard

Testing procedure and results storage on embedded hard drive

Model details

EV-70H-7001	5-3000kgf	Single indenter, BIOS, Excl screen
EV-70H-7002	5-3000kgf	Single indenter, BIOS, Incl screen
EV-70H-7003	0.2-3000kgf	Rockwell, Vickers, Knoop, Brinell
EV-70H-7004	0.2-3000kgf	Rockwell, Vickers, Knoop, Brinell
