Tinius Olsen

Model Evotech 701*

Evotech 701*
Evotech 701*
Evotech 701*
previous arrow
next arrow

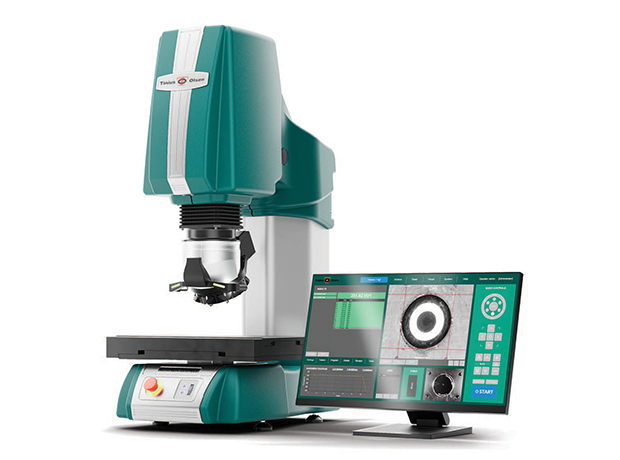

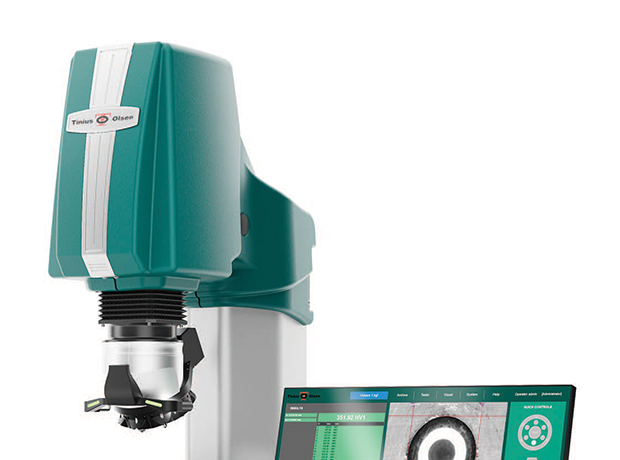

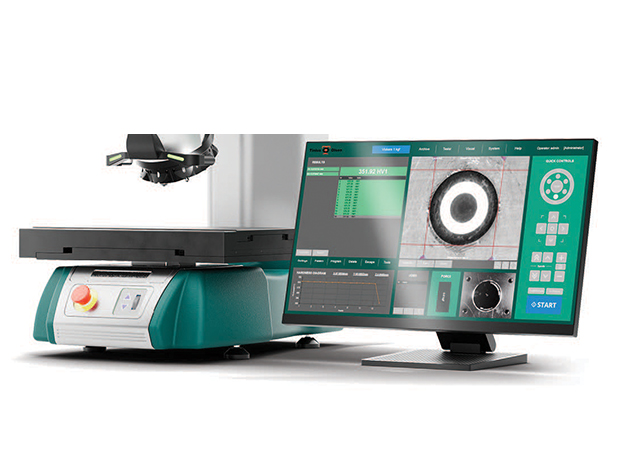

The model Evotech 701*, Rockwell, Vickers, Knoop and Brinell hardness tester provides exceptional performance, designed to match the most demanding user tasks. This tester contains a revolutionary force application range and renewed optical system. The all new 9 position turret accommodates a wide range of indenters, indenter actuators with load cells, objectives, a cross-laser positioning system and a load cell supported touch probe. It also provides a base to the 18 megapixel full color measurement camera and 18 megapixel full color overview camera with variable field of view, motorized zoom and auto focus system.

  • Download Brochure
  • Request a Proposal
  • Mail us

Features and Benefits

  • Multi load cell, closed loop, force control
  • Load range 10gf-3000kgf (0.1N-30kN)*
  • Meets or exceeds ISO, ASTM and JIS standards
  • 9 position tool changer (turret) with visual LED process indicators
  • 18 megapixel full color measurement camera, bright white LED TTL illumination
  • 18 megapixel full color sample image & stage overview camera
  • Automatic workpiece height detection
  • Top quality ABS replaceable body parts, no frame damage from falling objects
  • Horizon high performance PC-based camera indent measuring system. Automatic measurement of the indent on the industrial touch screen. Archive file, handle images and data on the tester or your network

    • Model details

    EV-051-7010 0.2-250kgf Rockwell, Vickers, Knoop, Brinell
    EV-051-7012 0.2-750kgf Rockwell, Vickers, Knoop, Brinell
    EV-051-7014 0.2-3000kgf Rockwell, Vickers, Knoop, Brinell
