Evotech 705* series of Universal hardness testing system from Tinius Olsen

Tinius Olsen

Model Evotech 705*

Evotech 705*

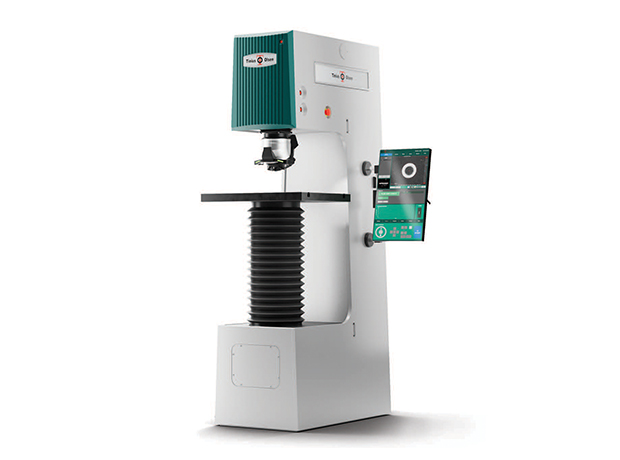

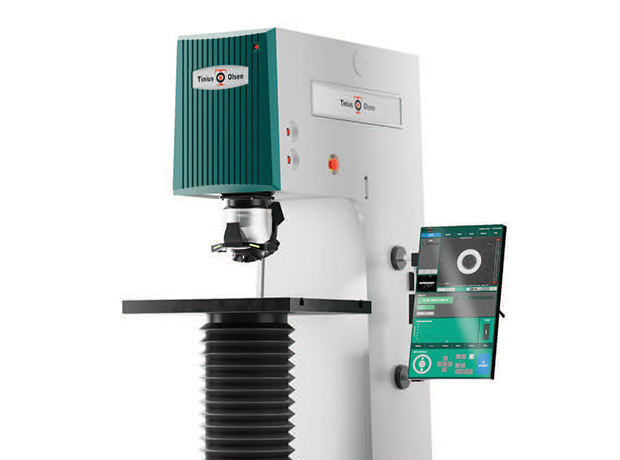

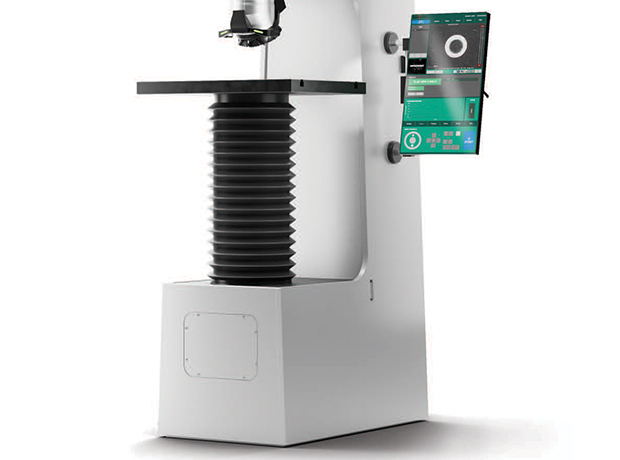

The model Evotech 705* is a heavy duty, rock solid C-frame with supreme rigidity. The closed loop system based on a load cell and Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT and HBT scales are part of testing capabilities. The test force ranges from 200gf to 3000kgf and test cycles can be automatic or manual. With motorized Z axis, descending test head capable of workpiece detection and motorized 8 position turret, it is one of the most loaded technological Hardness tester. 15” industrial touch screen and PC based Horizon software added advantage for this equipment.

Download User Instruction Manual
Please Fill the Fields to download pdf
First Name*

Last Name*

Company Name*

Job Title*

Your email*

Phone Number*

Equipment, Interested In*

Industry*

Street

Country*

State*

City*
Zip Code

How can we help?

By ticking this box I agree, in accordance with the General Data Protection Regulation (GDPR) 2018, to my personal data being stored and used by Tinius Olsen. Typically, information may be used; to identify and communicate with you, for commercial activities (including newsletters) or for marketing and business updates.
Download Brochure
Request a Proposal
Mail us

Features and Benefits

Load cell, closed loop, force feedback system

Load range 200gf-3000kgf (2N-30kN)

Meets or exceeds ISO, ASTM and JIS standards

Z-axis with ball bearing spindle

Descending test head with automatic workpiece detection

3 indenter positions, 3 LWD objectives installed (included)

High definition optical system for images of 0.7x to 1000x magnification

PC based Horizon hardness testing firmware and database file system, standard

Large, adjustable 15” industrial touch screen

Automatic or manual focus, manual or fully automatic indent measurement, standard

Testing procedure and results storage on embedded hard drive

LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard

On board built-in driver for (optional) motorized XY stage, standard

Free definable test patterns case depth, traverse, free style, etc, optional

Raise and lower up to 800kg specimen (standard)

Model details

EV-096-7050	0.5-250kgf	Rockwell, Vickers, Knoop, Brinell
EV-096-7052	0.2-250kgf	Rockwell, Vickers, Knoop, Brinell
EV-096-7054	5-3000kgf	Rockwell, Vickers, Knoop, Brinell
EV-096-7056	0.2-3000kgf	Rockwell, Vickers, Knoop, Brinell
