Evotech 708* series of Universal hardness testing system from Tinius Olsen

Tinius Olsen

Model Evotech 708*

Evotech 708*

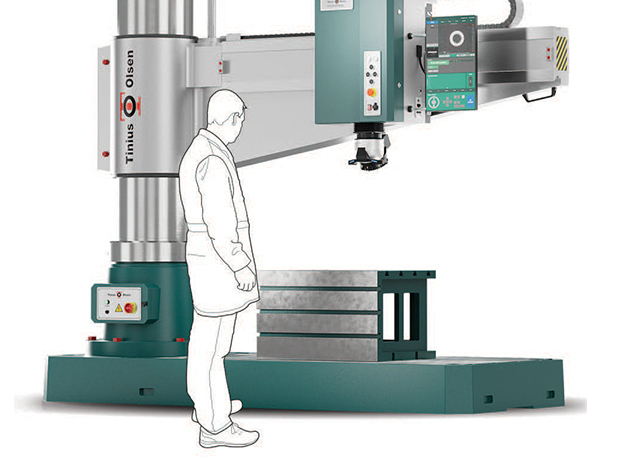

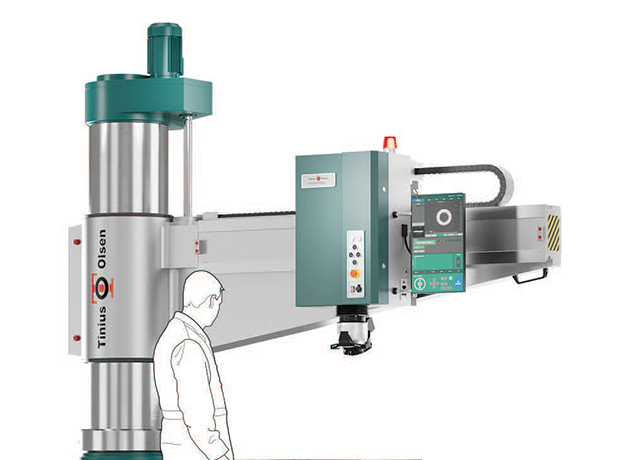

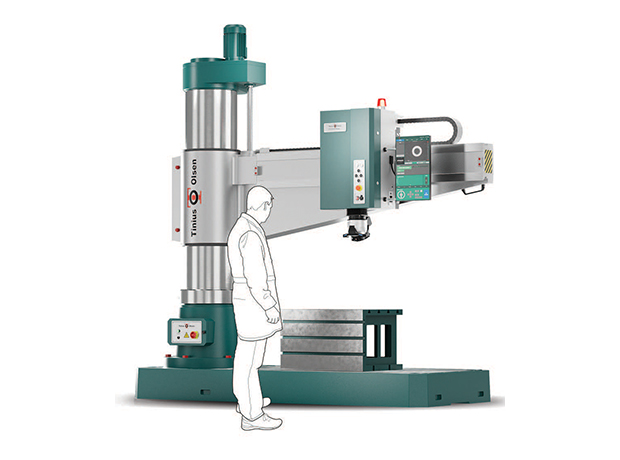

The model Evotech 708* is a large radial frame that allows testing either on the machine base or beside it. The heavy-duty test head easily pivots, ensuring seamless positioning of workpieces without any hindrance. Forget the hassle of manual workpiece adjustments. Use a crane or forklift truck to effortlessly position your parts. With its unique dual Z-axis, this tester provides an impressive range of test scales. From Vickers 500gf to Brinell 3000kgf, this tester can determine the hardness of objects ranging from small to remarkably large. The standard delivered removable cast iron block stage makes it convenient to test smaller parts at an ergonomic working height, ensuring precision and ease of use.

Download User Instruction Manual
Please Fill the Fields to download pdf
First Name*

Last Name*

Company Name*

Job Title*

Your email*

Phone Number*

Equipment, Interested In*

Industry*

Street

Country*

State*

City*
Zip Code

How can we help?

By ticking this box I agree, in accordance with the General Data Protection Regulation (GDPR) 2018, to my personal data being stored and used by Tinius Olsen. Typically, information may be used; to identify and communicate with you, for commercial activities (including newsletters) or for marketing and business updates.
Download Brochure
Request a Proposal
Mail us

Features and Benefits

Multi load cell, closed loop system, force feedback system

Load range 200gf-3000kgf (2N-30kN)

Meets or exceeds ISO, ASTM and JIS standards

Z-axis with ball bearing spindle

Descending test head with automatic workpiece detection

9 position turret with visual LED process indicators

18MP measurement camera+18MP overview camera

PC based Horizon hardness testing firmware and database file system, standard

Large, adjustable 22” industrial touch screen

Automatic or manual focus, manual or fully automatic indent measurement, standard

Testing procedure and results storage on embedded hard drive

LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard

On board built-in driver for (optional) motorized XY stage, standard

Free definable test patterns case depth, traverse, free style, etc, optional

Model details

EV-098-7080	0.5-250kgf	Rockwell, Vickers, Knoop, Brinell
EV-098-7082	0.2-250kgf	Rockwell, Vickers, Knoop, Brinell
EV-098-7084	5-3000kgf	Rockwell, Vickers, Knoop, Brinell
EV-098-7086	0.2-3000kgf	Rockwell, Vickers, Knoop, Brinell
EV-098-7088	3-3000kgf	Rockwell, Brinell
