Tinius Olsen
Model FH11-52
The model FH11-52 is load cell, force feedback, closed loop system that is fully automatic, servo motor driven.

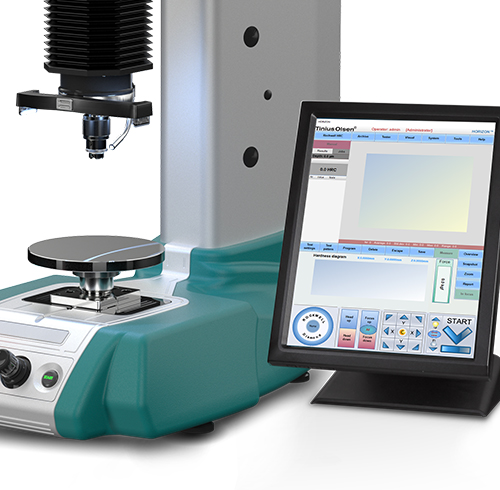

The test forces can range from 3-150kgf and perform Rockwell, Superficial Rockwell and Brinell hardness tests. This fully integrated Windows Controller, SSD hard disk, Windows 10 operated system also includes automatic measurement, 15in full color touch screen and a motorized descending test head with collision detection. It can accommodate a workpiece of 345x220mm.
Features & Benefits
- Digital, twin scale, load cell, closed loop, force feedback system
- Load range 3-150kgf (29.4-1471N)
- Meets or exceeds ISO, ASTM and JIS standards
- Built-in laser positioning system (optional)
- Full color industrial 15in touch screen interface
- Adjustable workpiece illumination
- Manual, motorized stages
- Large workpiece accommodation: 345x220mm (HxD)
Model details
- 3-150kgf – Rockwell, Superficial Rockwell, Brinell (optional)
Model FH11-52
