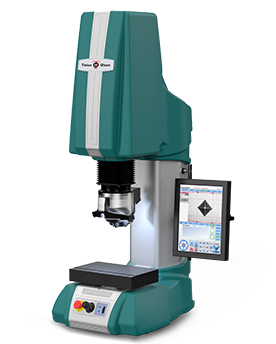

Model FH11 Universal
The model FH11-50/51 is a heavy duty, rock solid C-frame with supreme rigidity. It is a closed loop system based on a load cell with Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT and HBT scales as part of the testing capabilities.
The test force ranges from 200-250kgf and test cycles can be automatic or manual. With motorized eight-position turret and descending test head capable of workpiece detection, it is one of the most loaded technological hardness testers. It also has the added advantage of a 15in industrial touchscreen and PC-based Horizon software.
Features & Benefits
- Load cell, closed loop, force feedback system
- Load range 200gf-3000kgf (1.96-29kN)
- Meets or exceeds ISO, ASTM and JIS standards
- Descending test head with automatic workpiece detection

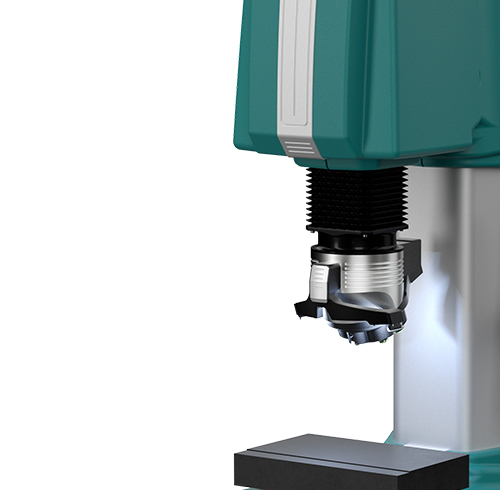

- Free definable, manual or motorized eight-position turret for objectives and indenters
- High definition optical system for images of 0.7-1000x magnification
- 18MP full HD camera system
- PC-based Horizon hardness testing firmware and database file system, standard

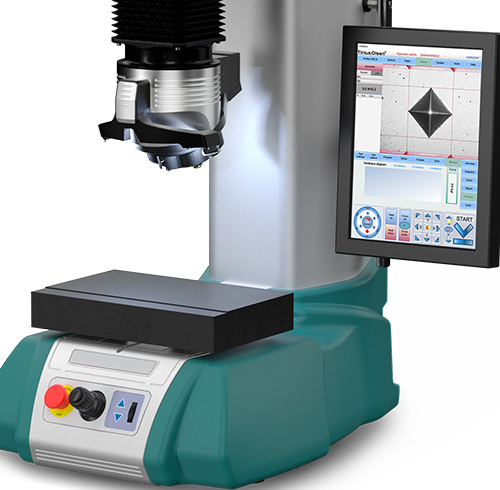

- Large, adjustable 15in industrial touchscreen
- Automatic or manual focus, manual or fully automatic indent measurement, standard
- Testing procedure and results storage on embedded hard drive
- LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard
- On board built-in driver for (optional) motorized X-Y stage, standard
Model details
FH-011-0050:
- 200gf-250kgf – Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT, HBT
FH-011-0051:
- 200gf-3000kgf – Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT, HBT
