Model MHT-1,000 Series of Horizontal Tensile Testing Machines from Tinius Olsen

Tinius Olsen

Model MHT 1000

banner img

tinius

download

C53A4256

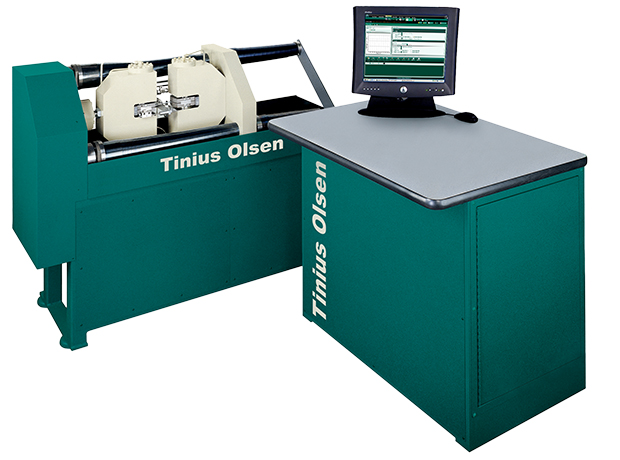

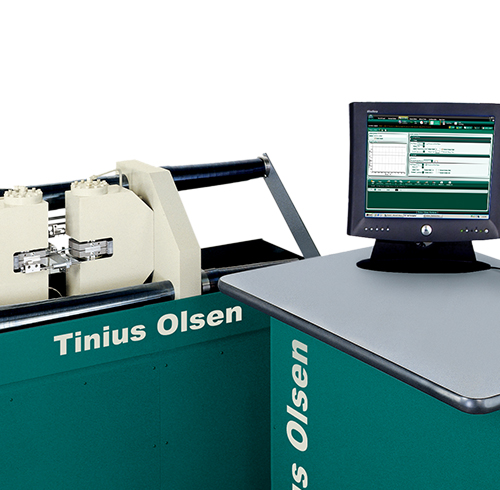

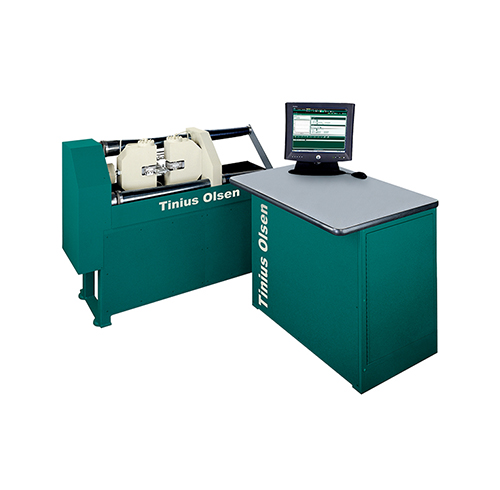

For maximum tensile testing throughput and capability, Tinius Olsen offers horizontal tensile testing machines with capacities of 5kN (1000lbf).

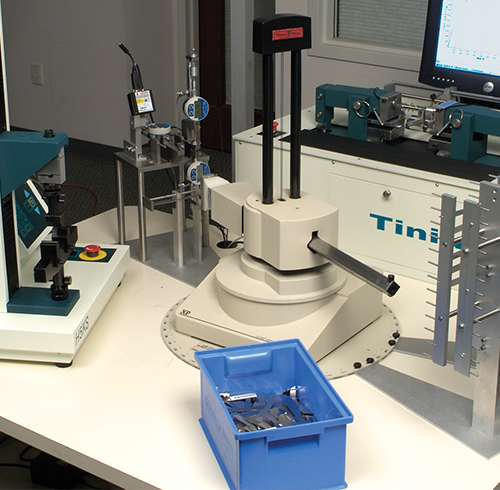

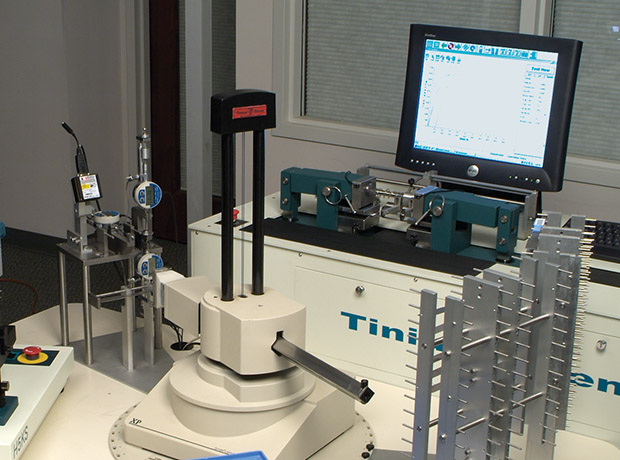

Model MHT-1,000 horizontal testing machine offer unique benefits over vertically oriented testers by allowing a range of accessories to be mounted next to the machine to turn it into a fully automatic testing station.

They are designed primarily for production departments and are typically in constant use; however, the grips can be modified to accommodate different shaped samples and alternate grips can be provided for customers when test requirements change.

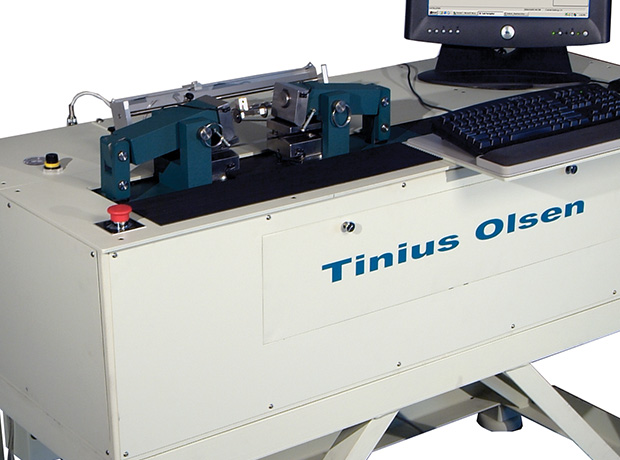

The horizontal extensometer that is typically used with the machine has a unique design that incorporates pneumatic controls to automatically lower the arms prior to the test and raise the arms at the end of the test. Air bearings on the extensometer provide accurate strain measurement through fracture.
